powered solar assisted long life (up to 5000 hours),with changeable batteries required.
Two independent arc sensors.
Filter darkening reaction is 1/15000 seconds.
It is applicable to MMA, TIG, PAC, PAW, CAC-A, OFW, OC.
Variable shade 9.0~13.0, variable sensitivity and delay control.
Light weight, well balanced, advanced design fully adjustable headgear.
Includes the replacement of the cover lenses.

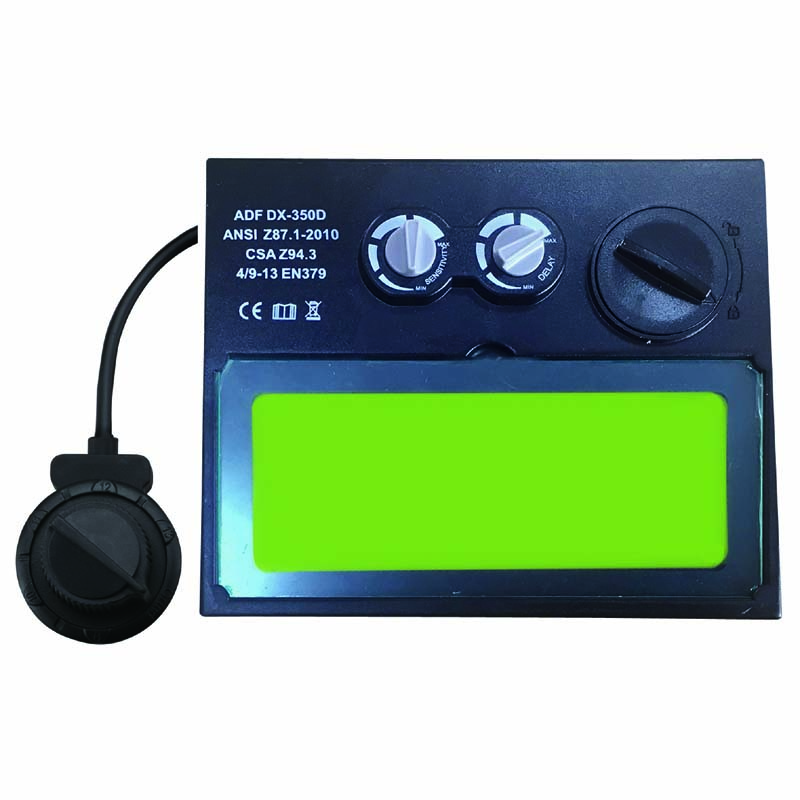

| Model | ADF DX-350D |
| Optical Class | 1/1/1/2 |
| Dark State | Variable shade,9~13 |
| Shade Control | External |
| Cartridge Size | 110mmx90mmx9mm(4.33"x3.54"x0.35") |
| Viewing Size | 90mmx35mm(3.54" x 1.38") |
| Arc Sensor | 2 |
| Battery Type | 1xCR2032 Lithium Battery |
| Battery Life | 5000 H |
| Power | Solar Cell + Lithium Battery |
| Shell Material | PP |
| Headband Material | LDPE |
| User Type | Professional and DIY Household |
| Visor Type | Auto Darkening Filter |
| Low Amperage TIG | ≥20Amps(AC), 0Amps(DC) |
| Light State | DIN4 |
| Dark To Light | 0.1-1.0s by infinitely dial knob |
| Light To Dark | 1/15000S |
| Sensitivity Control | Low To High, by infinitely dial knob |
| UV/IR Protection | DIN16 |
| GRIND Function | YES |
| Low Volume Alarm | NO |
| ADF Self-check | NO |
| Working Temperature | -5℃~+55℃( 23℉~131℉) |
| Storage Temperature | -20℃~+70℃(-4℉~158℉) |
| Warranty | 1 Year |
| Weight | 480g |
| Packing Size | 33x23x26cm |
| Certificate | ANSI,CE， |
