MEGA Series Customer-specific Decal Dimming Welding Helmet

Short Description:

▪Ideal for TIG, MMA, MIG, PAC, OC.

▪Variable Shade 9-13,Variable Sensitivity and Delay Controls.

Color: red, blue, yellow, red.

Send email to us

Product Detail

FAQ

Product Tags

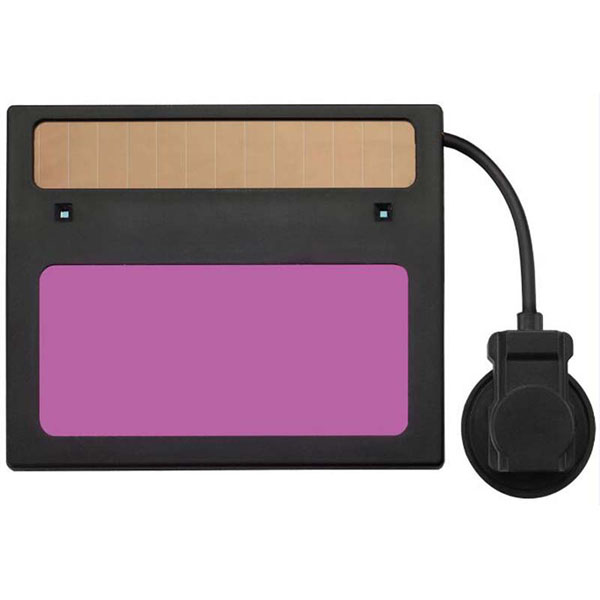

The MEGA Series Auto Darkening Welding Helmet Can Match The Filter as follows,

Model	ADF DX-400S	ADF DX-500S	ADF DX-500T
Optical Class	1/2/1/2	1/2/1/2	1/2/1/2
Dark State	Variable shade,9~13	Variable shade,9~13	Variable shade,9~13
Shade Control	External	External	External
Cartridge Size	110mmx90mmx9mm(4.33"x3.54"x0.35")	110mmx90mmx9mm(4.33"x3.54"x0.35")	110mmx90mmx9mm(4.33"x3.54"x0.35")
Viewing Size	92mmx42mm(3.62" x 1.65")	92mmx42mm(3.62" x 1.65")	92mmx42mm(3.62" x 1.65")
Arc Sensor	2	2	2
Battery Type	No Battery change required	No Battery change required	1xCR2032 Lithium Battery
Battery Life	5000 H	5000 H	5000 H
Power	Solar Cell + Lithium Battery	Solar Cell + Lithium Battery	Solar Cell + Lithium Battery
Shell Material	PP	PP	PP
Headband Material	LDPE	LDPE	LDPE
User Type	Professional and DIY Household	Professional and DIY Household	Professional and DIY Household
Visor Type	Auto Darkening Filter	Auto Darkening Filter	Auto Darkening Filter
Low Amperage TIG	20Amps(AC), 20Amps(DC)	10Amps(AC), 10Amps(DC)	10Amps(AC), 10Amps(DC)
Light State	DIN4	DIN4	DIN4
Dark To Light	0.25-0.85s Auto	0.1-1.0s Auto	0.1-1.0s by adjustment button
Light To Dark	1/15000S	1/15000S	1/25000S
Sensitivity Control	Low To High, by infinitely dial knob	Low To High, by infinitely dial knob	Low To High, by infinitely dial knob
UV/IR Protection	DIN16	DIN16	DIN16
GRIND Function	YES	YES	YES
Low Volume Alarm	NO	NO	NO
ADF Self-check	NO	NO	NO
Working Temperature	-5℃~+55℃( 23℉~131℉)	-5℃~+55℃( 23℉~131℉)	-5℃~+55℃( 23℉~131℉)
Storage Temperature	-20℃~+70℃(-4℉~158℉)	-20℃~+70℃(-4℉~158℉)	-20℃~+70℃(-4℉~158℉)
Warranty	1 Year	1 Year	1 Year
Weight	480g	480g	490g
Packing Size	33x23x26cm	33x23x26cm	33x23x26cm
Certificate	CE,ANSI, SAA	CE,ANSI, SAA	CE,ANSI, CSA
